Check our the ZipStop Selection Guide here before purchasing to ensure you are getting the correct device for your facility.

Zip.Stop.Repeat. The best brake for your zip line, the zipSTOP SPEED is best suited to rider arrival speeds between 0-72 kph (0-45 mph).

The zipSTOP SPEED Zip Line Brake uses self-regulating eddy current magnetic braking technology to brake zip line riders smoothly, comfortably, and consistently at high arrival speeds.

The zipSTOP SPEED is best suited for faster rider arrival speeds up to 72 kph (45 mph)

What makes the SPEED different?

The SPEED utilized an internal reduction in addition to an external 2:1 reduction system to smoothly arrest riders at the highest arrival speeds of any zipSTOP brake. This device must be used with an external 2:1 reduction line setup. The benefits of the SPEED include higher arrival speeds, improved automatic reset, and a smooth braking experience.

It allows for a wide variety of rider weights and speeds and automatically resets after each rider, minimizing human error. Head Rush Technologies used durable material able to withstand outdoor environments and work consistently in any condition. The zipSTOP SPEED Zip Line Brake offers low cost of ownership but does require an annual recertification ($399) and replacement of sacrificial wear parts.

The assembly includes:

• zipStop Zip Line Brake device

• Brake Trolley (decide size)

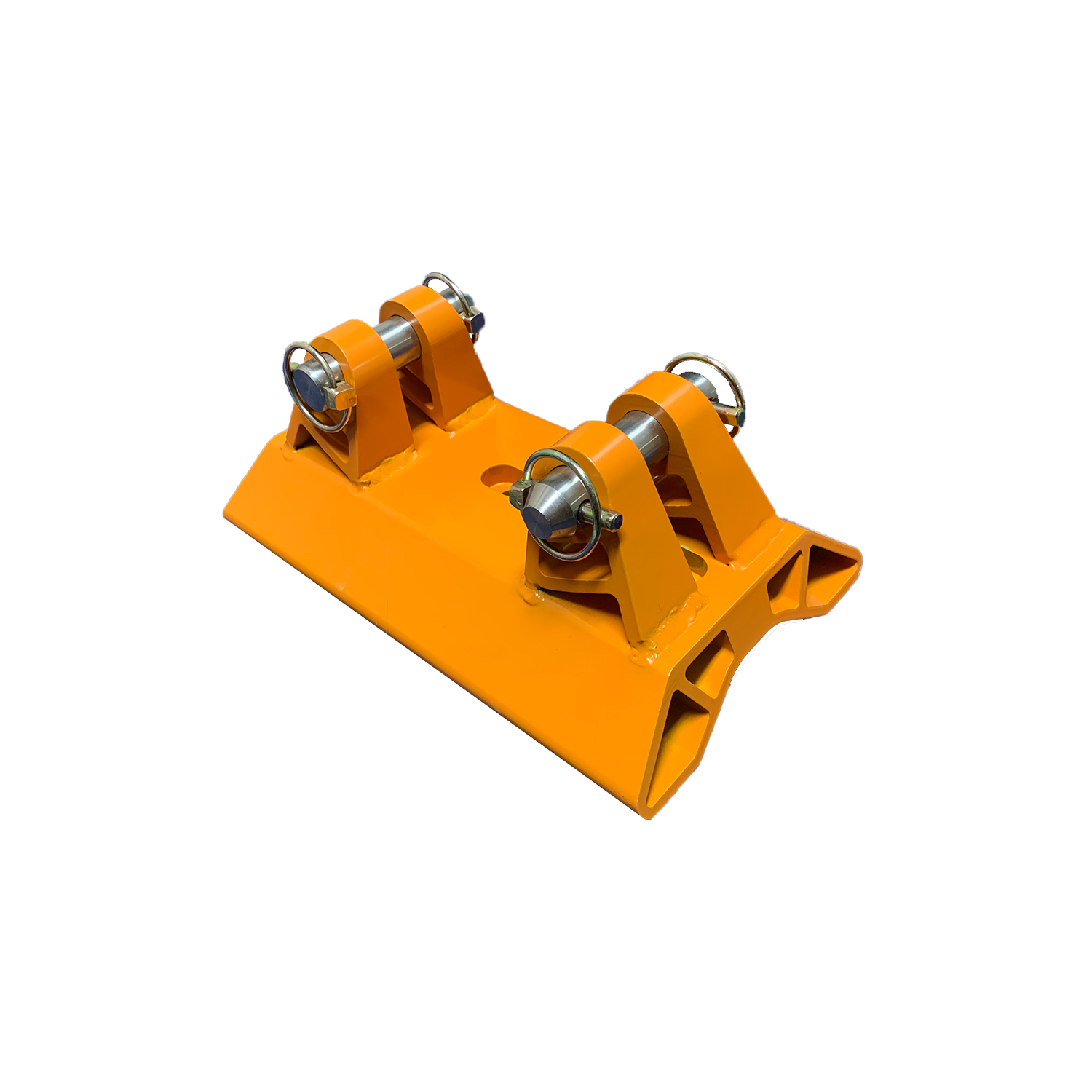

• Mounting bracket and hardware

Specifications:

• Rated working capacity: 15 to 150 kg (33 to 330 lbs)

• Device Weight: 23.5 kg (52 lbs)

• Model Number: ZSSD150-20A

• Rated work velocity: 0 to 72 kph (0 to 45 mph) utilizing a 2:1 reduction*

• Maximum Line Extension: 20m

View the zipSTOP Operation Manual here and the Installation Manual here.

*Shipment of these items could take up to 3-4 weeks. Please reach out for updated lead times if needed.
